Welcome to

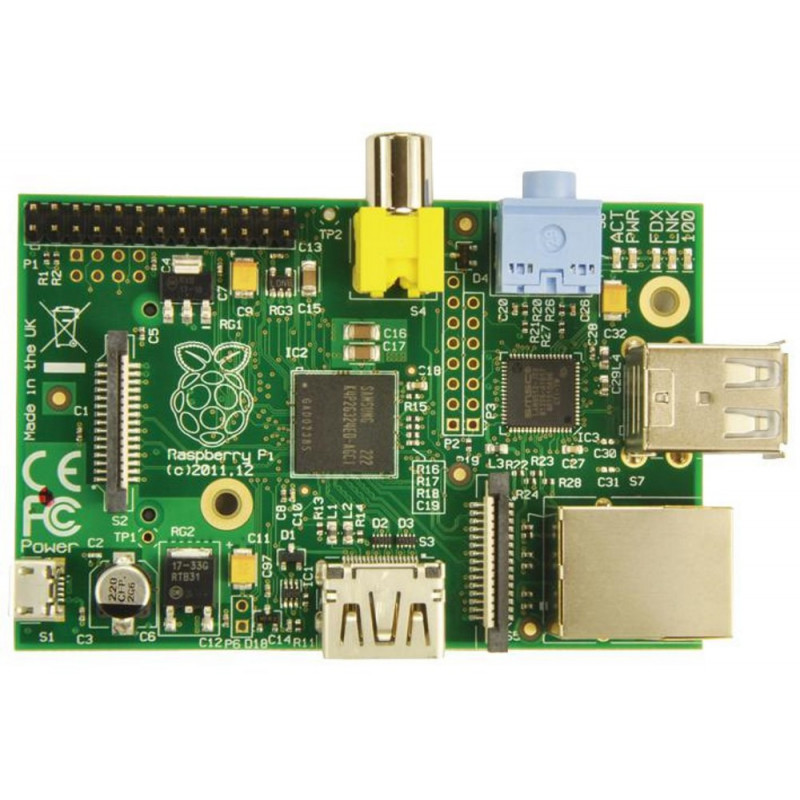

This is a .html page running on a Python http server which is running on a Raspberry Pi 1 model B
Connected to a four channel relay module
to control lights, fans and measures temperatures.

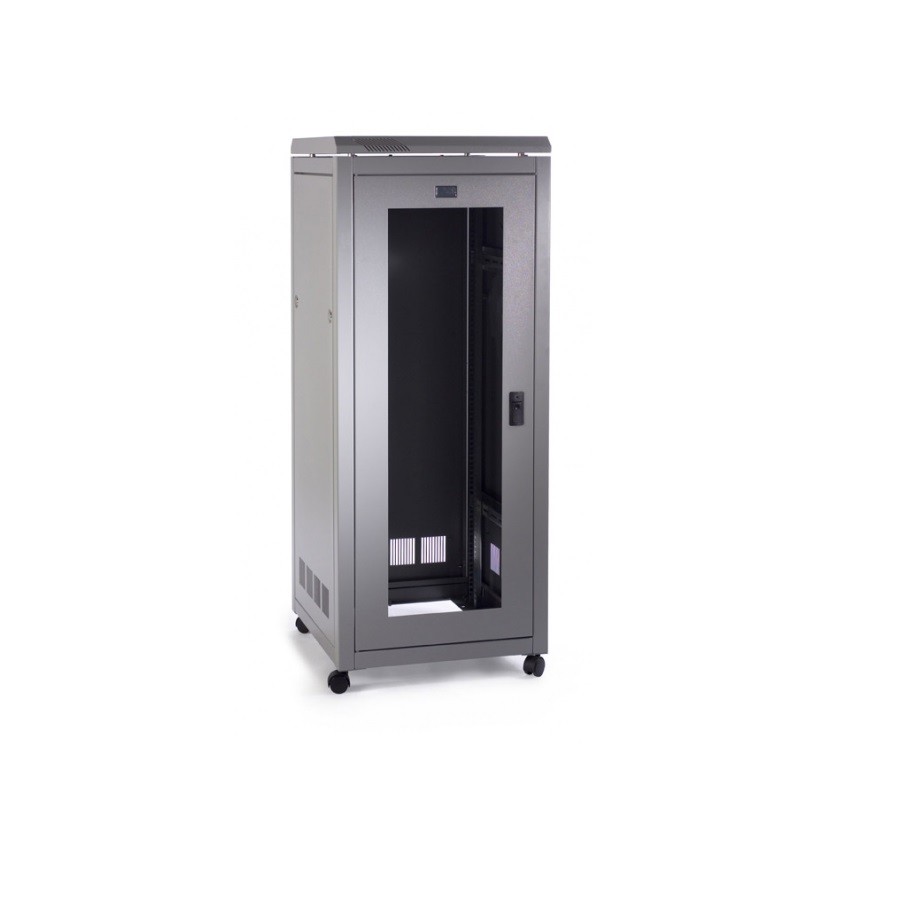

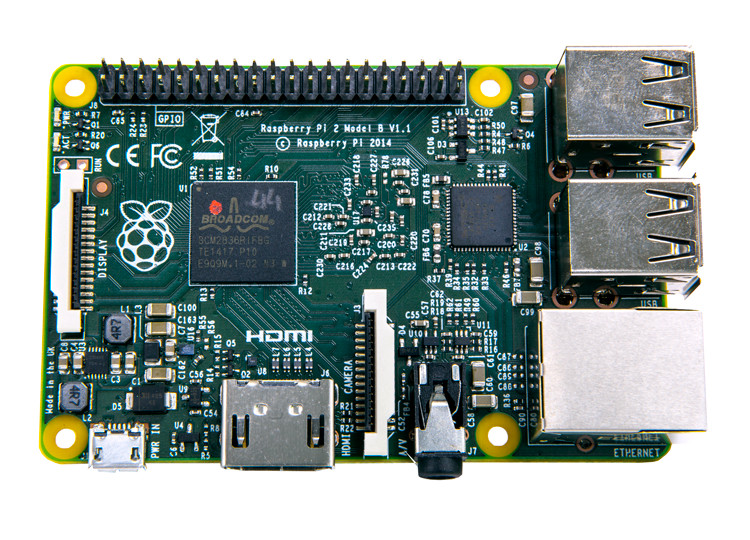

The cabinet is a Prism Pi Data 27 unit server rack with a 3D Printed 2 unit panel which holds a Raspberry Pi 2 model B
That is set up to mine DUCO as well as a node MCU linked with two Arduino Uno R3`s also setup for mining DUCO.
In the same panel is another Raspberry Pi 1 model B
That hosts a simple HTTP server and is connected to a four channel relay module to control LED lights and fans.
Under the Pi rack panel on a shelf is a CTC I3 Pro B 3D Printer that has a Raspberry Pi 3 model B+ running Octoprint.
Under the 3D printer on a 1 unit 3D printed bracket is a Netgear fs-108 8 port network switch.
Under the switch is my main system which is set up to dual boot Windows 10 and Linux and gets used for 3D printing, coding and playing games.
Under my main system is a 1 unit IBM eServer Xseries 335 it's old but works and is used to learn different OS skills and techniques and some times as temporary storage for computer repairs.
Under that I have a GPU Crypto mining rig with which I can mine different ALT coins and at the bottom is a 12tb storage array.
At the back of the cabinet is a 230V/AC - 12v DC 30amp PSU which powers the LED lights, fans and two USB sockets which powers some of the Raspberry Pi's.
